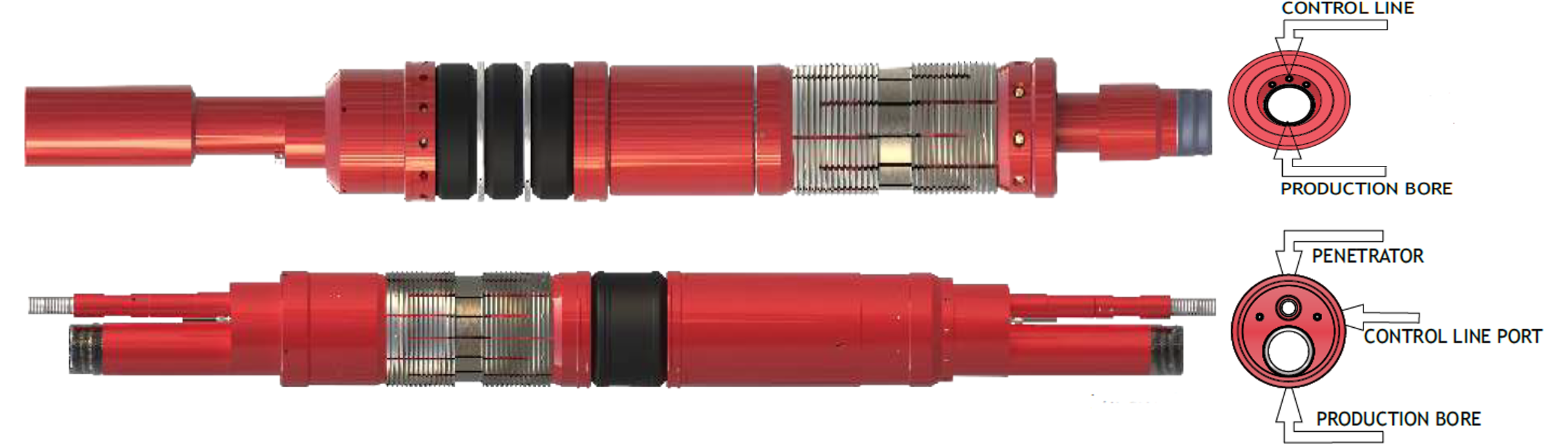

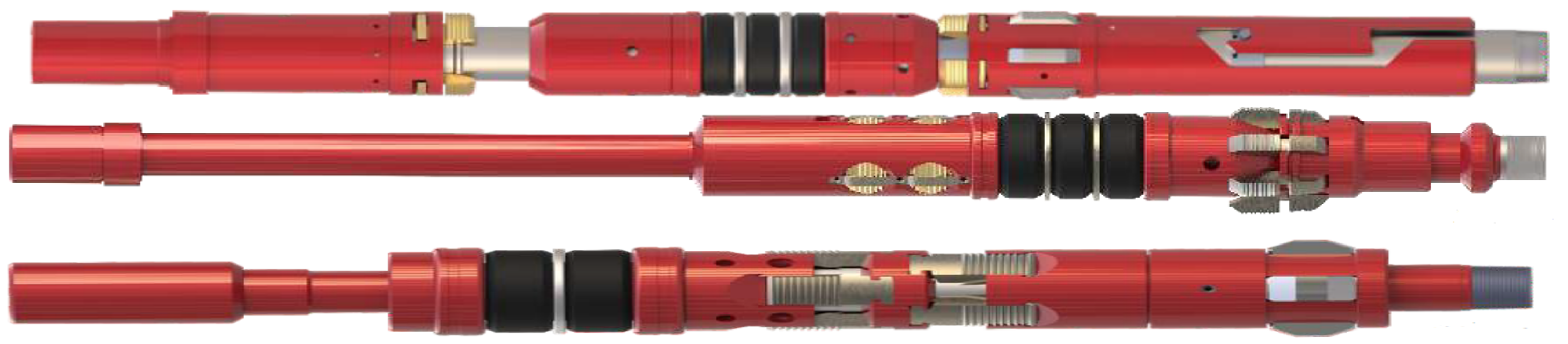

ESP packers, Dual production packers ; suitable for different downhole environments and pressure ranges.
Voir tout
suitable for different downhole environments and pressure ranges
Voir tout

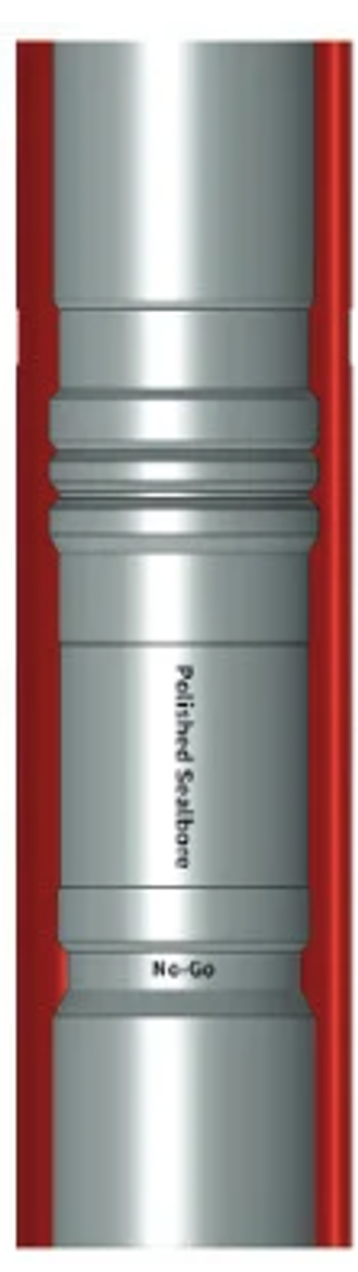

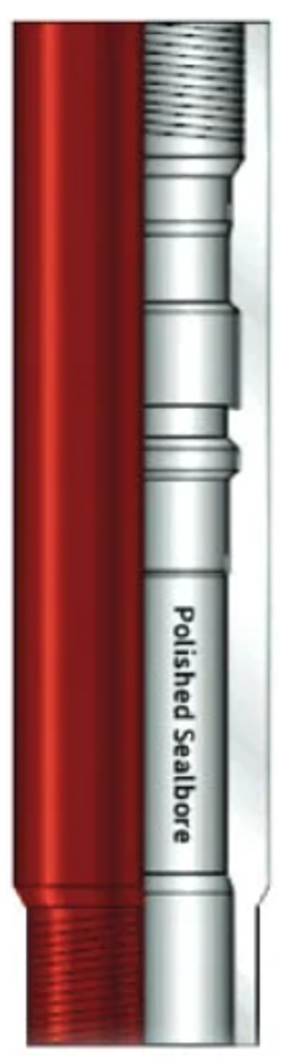

: is a tubing nipple for use with bottom no-go locking
devices. It is designed to be used in the heaviest weight, higher rated pressure
tubing. It has a sealbore, bottom no-go shoulder, and a locking groove.
Benefits :
- The Bottom No-Go ensures simple & positive landing of slickline tools.
- The Bottom No-Go prevents the loss of slickline tools.
is a fully selective nipple, used to land, lock and seal X-type locking mandrels with attached flow control devise in the production tubing string. The internal profile of MX Landing Nipples includes a selective profile, a locking recess, and a polished sealbore.
Voir tout

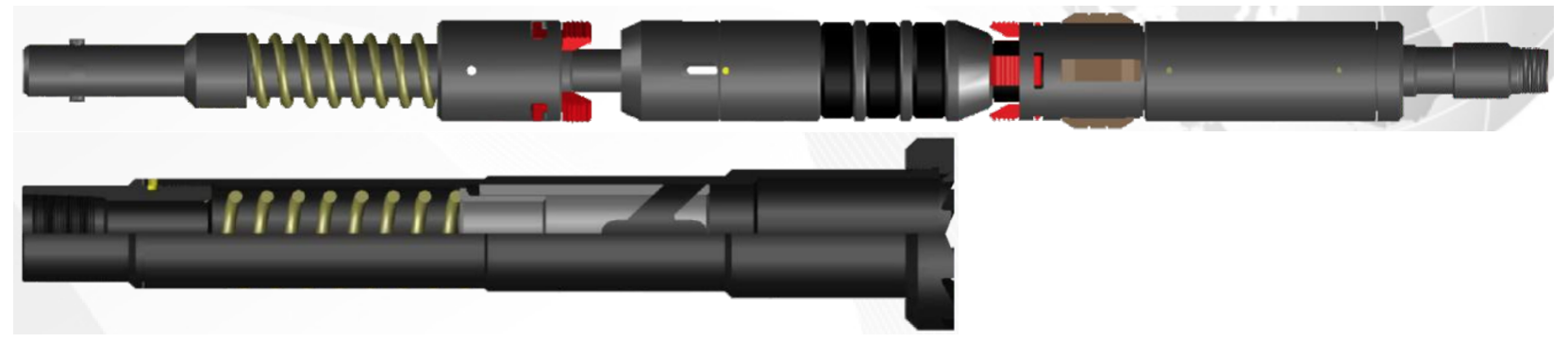

The SSSV series subsurface safety valves are tubing
retrievable surface controlled subsurface safety valves used for the low pressure
environment. When installed, the safety valve is connected to the surface through
the control line. The pressure from surface acts upon the piston of the safety valve
to control the opening and closing of the safety valve. The safety valve system is
designed to be fail safe, so that the wellbore is isolated in the event of any
system failure or damage to the surface production control facilities
Features
- Open and Closure of the valve is controlled by the pressure from surface.
- Self-equalizing and non-equalizing types are available.
- This product can be matched with standard nipple.
- Material selection for the body: different materials are availables
- The technical indexes meet API14A specification.
- Up-to 10000psi working pressure.
- Working temperature is 160ºC.
- Sealing and sealing surfaces are out of flow path, when valve is in the open
position.
- All types of threads are available.

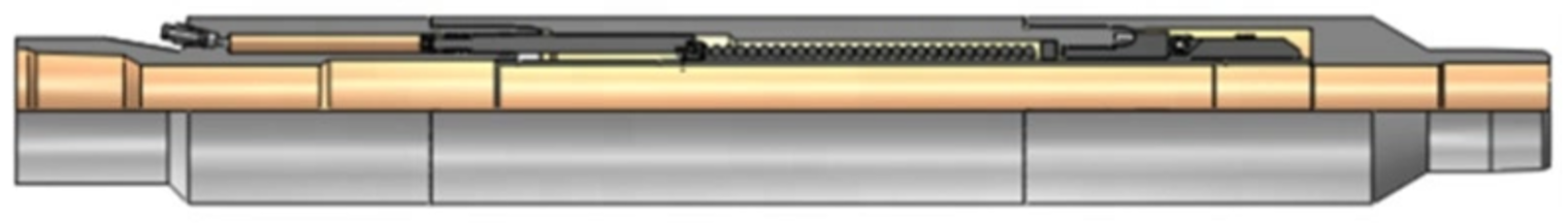

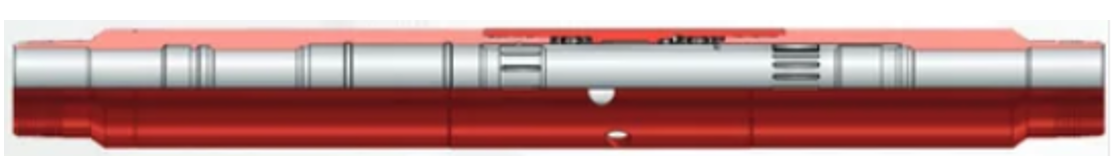

is a communication device with a ported inner sleeve
that can be opened or closed using a shifting tool by standard slickline or coiled
tubing methods. Equalizing holes in the inner sleeve provide pressure equalization
between the tubing and casing annulus as the sleeve is opened. The Sliding Sleeve is
made up to and forms part of the tubing string.
The Sliding Sleeve is available in shift-down-to-open tool and shift-up-to-open
models.
Features and Benefits:
- Compact and simple field proven design
- Standard Sliding Sleeve is manufactured using 4140 18-22Rc
- Alloy Steel with Viton elastomers for Standard and H2S Service
- Available with selective Nipple Profile to land slickline tools

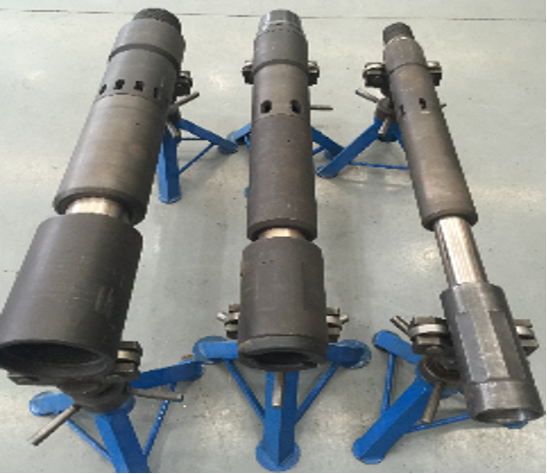

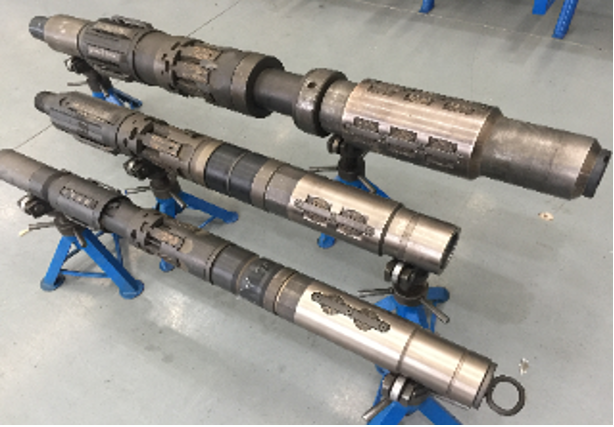

> RTTS Packers: is a full-opening, hook-wall packer used for squeeze, testing,
treating operations, usually run with a W8 Circulating Valve to bypass pressure
build-up. The packer body includes a J-slot mechanism, mechanical slips, packer
elements, and hydraulic hold-down slips.
Large, heavy-duty slips in the hydraulic hold-down mechanism help prevent the tool
from moving up-hole during higher injection rates.
In most case,RTTS packer runs with a multipurpose circulating valve, it also can
connect with a multipurpose safety joint.
Special Features:
- Hydraulic actuated upper hold down slips
- Positive rotational locks on all internal connections
- Back-up rings on all the o-rings provide for more reliable sealing at high
temperature and high pressure
- Available with extra-long top and bottom subs allowing hydraulic tong make-up and
break-out.
Applications :
- Reservoir stimulation & treating
- Hydraulic fracturing
- Tubing Conveyed perforating TCP
- DST..
The RTTS Circulating Valve is a locked-open/locked-closed valve that serves as a circulating valve, to reduce the effect of fluid-swabbing when Magnus RTT Packer is Run-In or pulled out of the hole.
Voir tout

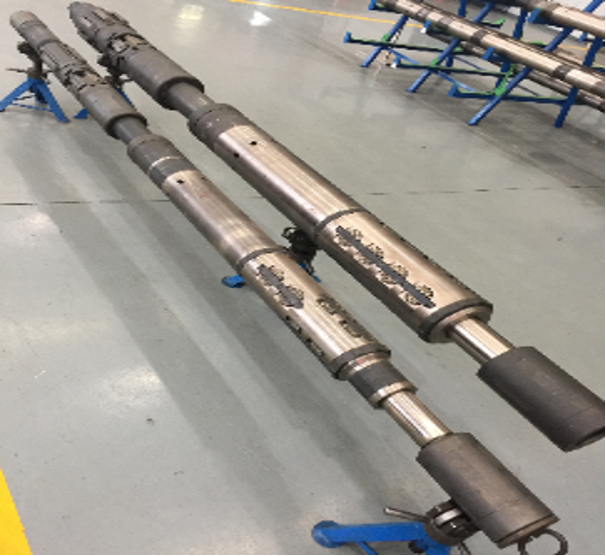

The CHAMP V 15K non-rotational packer is ideal for
deepwater, extended-reach situations where getting enough torque downhole to
manipulate the toolstring can be a major challenge.
This packer is constructed with higher grade materials, and elastomers are supported
with backup rings, including element package. The J-slot enables the packer to be
run in the casing, set, and unset without applying any rotation to the workstring.
The packer can cycle from the run-in-hole position to the set and pull-out-of-hole
positions simply by lifting or lowering the drillpipe or tubing in the wellbore.
A J-slot position locking mechanism keeps the packer in the run-in-hole
configuration until the required depth is reached and the locking mechanism is
deactivated. The position locking mechanism is deactivated by the use of a rupture
disk, which is set to rupture at a pre-determined pressure. The deactivation
pressure can be either wellbore hydrostatic at a certain depth or pump pressure
applied to the annulus at surface.
Applications & Features:
- The packer is used in highly deviated wells or where pipe manipulation is
difficult
- The tool is easily relocated in multiple zones during a single trip for treating,
testing, or squeezing.
- Suitable for testing, TCP or stimulation applications
- Rated up to 15,000 psi working pressure with a temperature rating of up to 204°C

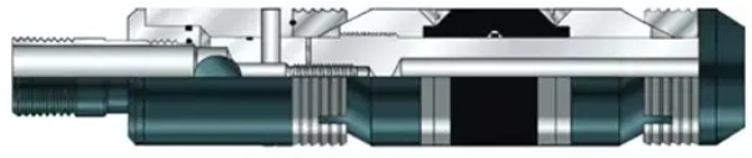

Hydro-Mechanical Bridge Plug is hydraulically actuated
and mechanically set. Compact, with a small OD, this tool can withstand high
pressure and is designed for easy drill out. It can be used in zone isolation for
squeeze cementing, fracturing, and plug and abandonment either temporary or
permanent.
Features and Benefits :
- The setting mechanism and control are contained in the bridge plug eliminating the
need for a complex mechanical setting tool.
- Eliminates the expense of wireline setting tool and equipment.
- Full tubing bore is available for unobstructed passage of fluids and wireline run
perforating and logging equipment after the plug is set and tubing released.
- Can be run and set in tandem with retrievable production packers or squeeze
packers.
- Tool can be configured for any casing hardness
The SSSV series subsurface safety valves are tubing
retrievable surface controlled subsurface safety valves used for the low pressure
environment. When installed, the safety valve is connected to the surface through
the control line. The pressure from surface acts upon the piston of the safety valve
to control the opening and closing of the safety valve. The safety valve system is
designed to be fail safe, so that the wellbore is isolated in the event of any
system failure or damage to the surface production control facilities
Features
- Open and Closure of the valve is controlled by the pressure from surface.
- Self-equalizing and non-equalizing types are available.
- This product can be matched with standard nipple.
- Material selection for the body: different materials are availables
- The technical indexes meet API14A specification.
- Up-to 10000psi working pressure.
- Working temperature is 160ºC.
- Sealing and sealing surfaces are out of flow path, when valve is in the open
position.
- All types of threads are available.
